Product Description
TIG Stainless Steel Welding Wire ER410,TIG Stainless Steel Welding ROD ER410,ER410,Stainless Steel Welding ROD ER410.

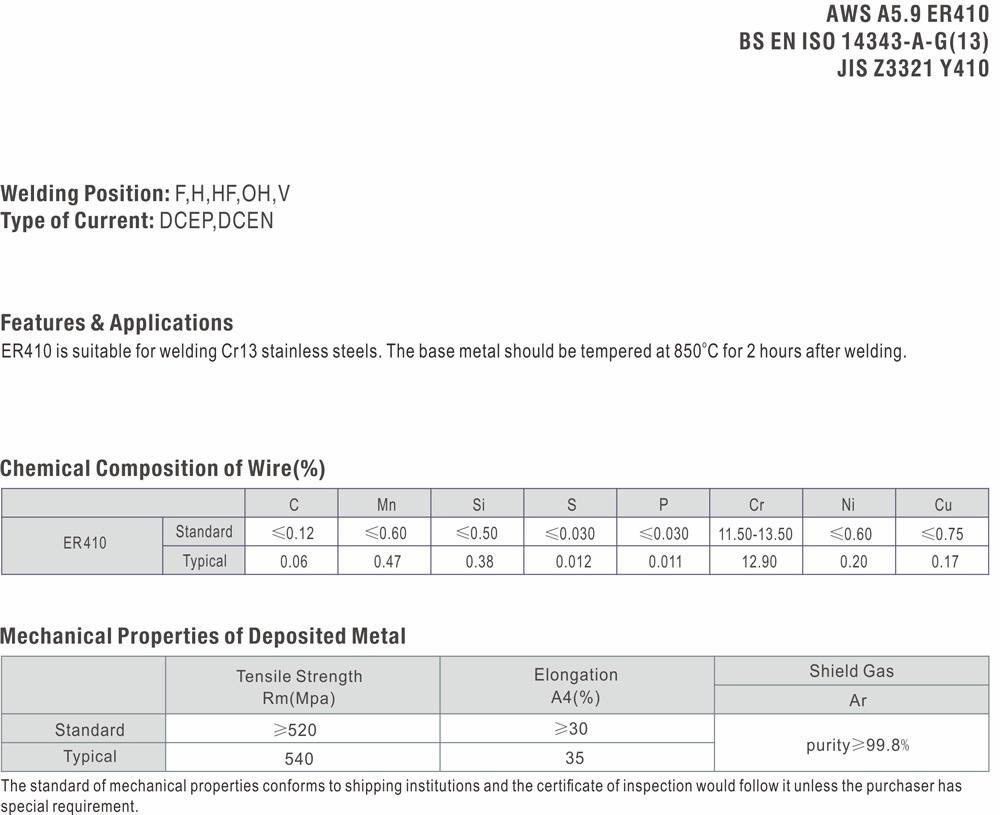

AWS A5.9 ER410
BS EN IS0 14343-A-G(13)
JIS Z3321Y410
Welding Position: F,H,HF,OH,V
Type of Current: DCEP,DCEN
Features & Applications
ER410 is suitable for welding Cr13 stainless steels. The base metal should be tempered at 850°C for 2 hours after welding.
Chemical Composition of Wire(%)
| ER410 | C | Mn | Si | S | P | Cr | Ni | Cu |
| Standard | ≤0.12 | ≤0.60 | ≤0.50 | ≤0.030 | ≤0.030 | 11.50-13.50 | ≤0.60 | ≤0.75 |
| Typical | 0.06 | 0.47 | 0.38 | 0.012 | 0.011 | 12.9 | 0.20 | 0.17 |
Mechanical Properties of Deposited Metal
| Tensile Strength Rm(Mpa) |
Elongation A4(%) |
Shield Gas | |
| Ar | |||
| Standard | ≥520 | ≥30 | purity≥99.8% |
| Typical | 540 | 35 |
The standard of mechanical properties conforms to shipping institutions and the certificate of inspection would follow it unless the purchaser has special requirement.
