Product Description

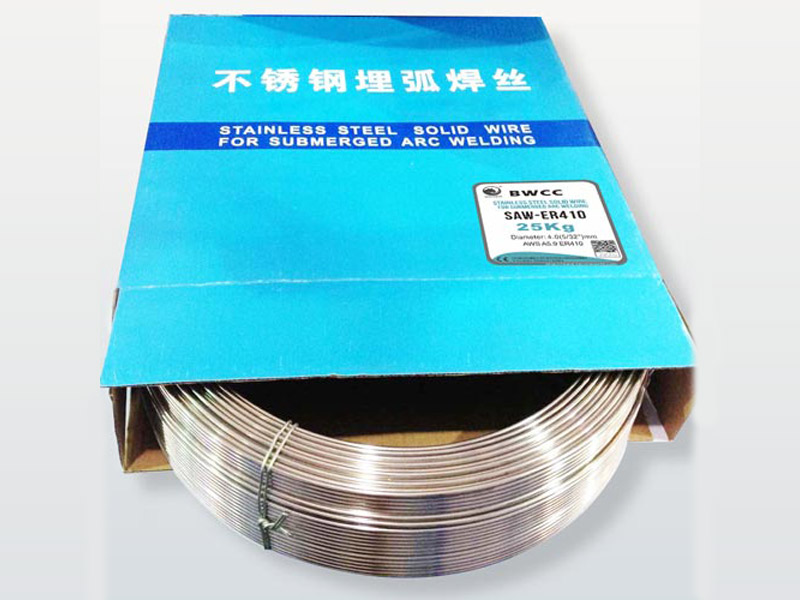

Submerged Arc Welding Wire ER410,Submerged Arc STAINLESS STEEL Welding Wire ER410,ER410
AWS A5.9 ER410BS EN
ISO 14343-A-G(13)BS EN
ISO 14343-B-SS410
JIS Z3324 YS410
Welding Position: F
Type of Current: DCEP
Features & Applications
ER410 is for hard facing surface of structures made of 0Cr13 or 1Cr13 stainless steels.
Chemical Composition of Wire(%)
| ER410 | C | Mn | Si | S | P | Cr | Ni | Cu |
| Standard | ≤0.12 | ≤0.60 | ≤0.50 | ≤0.030 | ≤0.030 | 11.50-13.50 | ≤0.60 | ≤0.75 |
| Typical | 0.10 | 0.47 | 0.42 | 0.011 | 0.016 | 11.80 | 0.20 | 0.14 |
Mechanical Properties of Deposited Metal
| Tensile Strength Rm(Mpa) | Elongation A4(%) | |
| Standard | ≥500 | ≥25 |
| Typical | 510 | 26 |
The standard of mechanical properties conforms to shipping institutions and the certificate of inspection would follow it unless the purchaser has special requirement.
