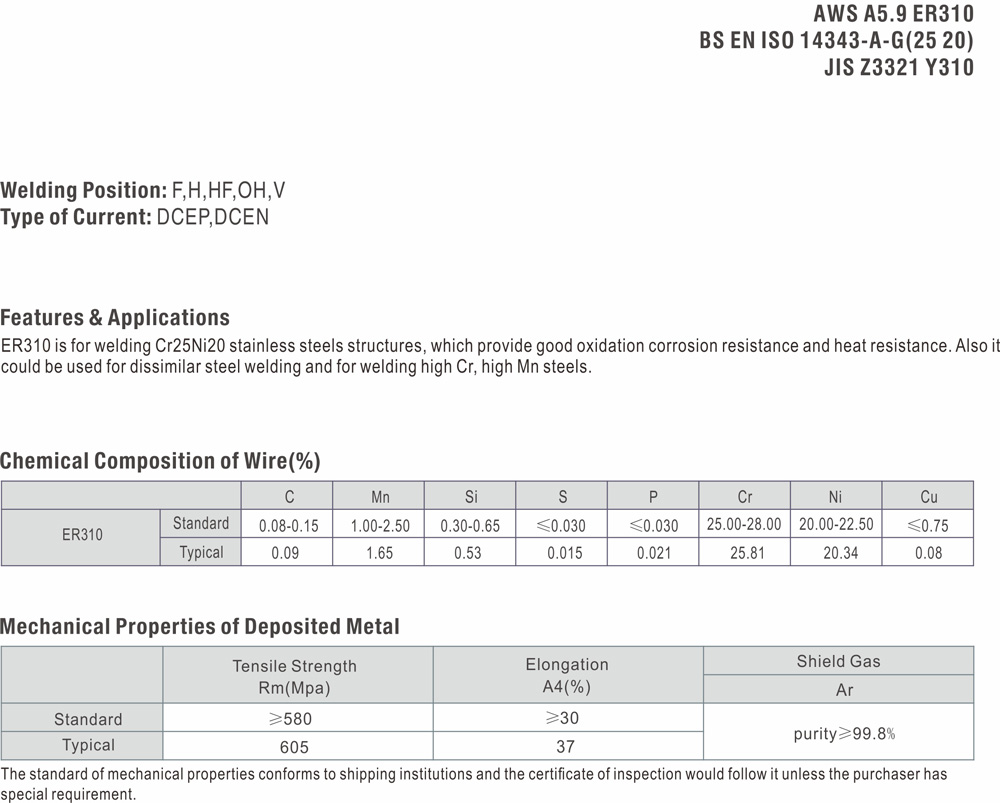

Product Description
TIG Stainless Steel Welding Wire ER310,TIG Stainless Steel Welding ROD ER310,ER310,Stainless Steel Welding ROD ER310.
AWS A5.9 ER310
JIS Z3321 Y310
BS EN ISO 14343-A-G(25 20)
Welding Position: F,H,HF,OH,V
Type of Current: DCEP,DCEN
Features & Applications
ER310 is for welding Cr25Ni20 stainless steels structures, which provide good oxidation corrosion resistance and heat resistance. Also it could be used for dissimilar steel welding and for welding high Cr, high Mn steels.
Chemical Composition of Wire(%)
| ER310 | C | Mn | Si | S | P | Cr | Ni | Cu |
| Standard | 0.08-0.15 | 1.00-2.50 | 0.30-0.65 | ≤0.030 | ≤0.030 | 25.00-28.00 | 20.00-22.50 | ≤0.75 |
| Typical | 0.09 | 1.65 | 0.53 | 0.015 | 0.021 | 25.81 | 20.34 | 0.08 |
Mechanical Properties of Deposited Metal
| Tensile Strength Rm(Mpa) |
Elongation A4(%) |
Shield Gas | |
| Ar | |||
| Standard | ≥580 | ≥30 | purity≥99.8% |
| Typical | 605 | 37 |
The standard of mechanical properties conforms to shipping institutions and the certificate of inspection would follow it unless the purchaser has special requirement.
