ER309 is suitable for welding similar chemical composition stainless steel structures and dissimilar steel,e. g. Cr19Ni10 with mild steel, as well as for welding high Mn and High Cr steels.

E-mail: max@tensileweld.com

Phone / WhatsApp / WeChat: +8615066821752


Product Description

TIG Stainless Steel Welding Wire ER309,TIG Stainless Steel Welding ROD ER309,ER309,Stainless Steel Welding ROD ER309.

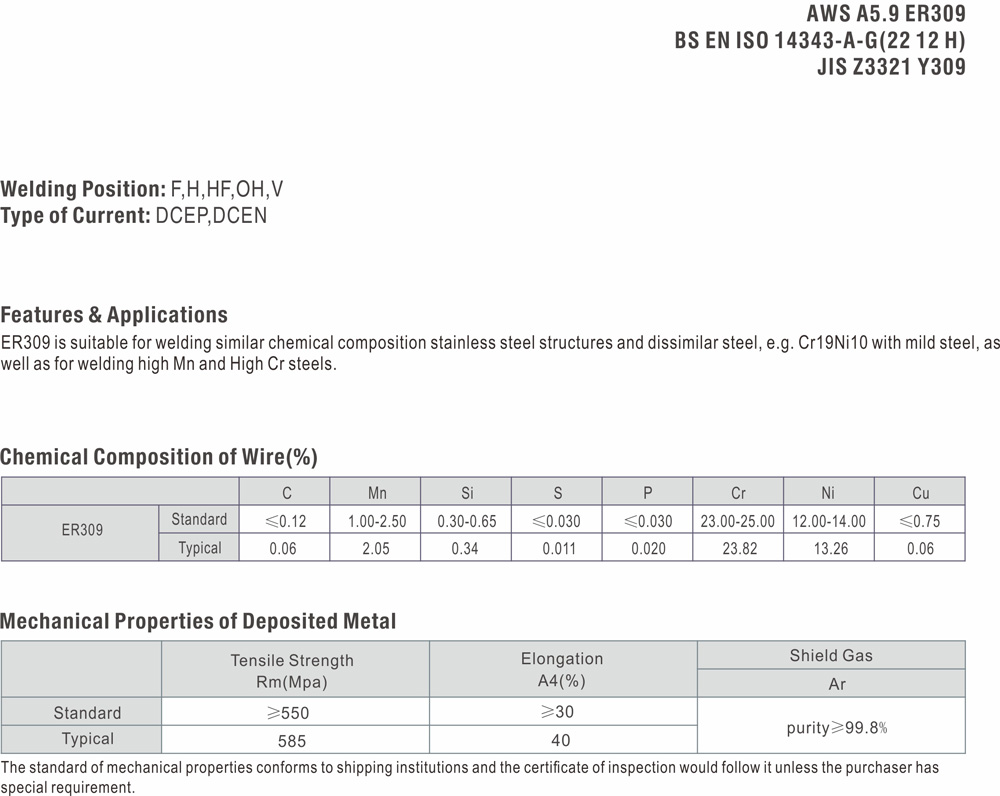

AWS A5.9 ER309

BS EN ISO 14343-A-G(22 12 H)

JIS Z3321 Y309

Welding Position: F,H,HF,OH,V

Type of Current: DCEP,DCEN

Features & Applications

ER309 is suitable for welding similar chemical composition stainless steel structures and dissimilar steel,e. g. Cr19Ni10 with mild steel, as well as for welding high Mn and High Cr steels.

Chemical Composition of Wire(%)

ER309 C Mn Si S P Cr Ni Cu
Standard ≤0.12 1.00-2.50 0.30-0.65 ≤0.030 ≤0.030 23.00-25.00 12.00-14.00 ≤0.75
Typical 0.06 2.05 0.34 0.011 0.020 23.82 13.26 0.06

Mechanical Properties of Deposited Metal

Tensile Strength
Rm(Mpa)
Elongation
A4(%)
Shield Gas
Ar
Standard ≥550 ≥30 purity≥99.8%
Typical 585 40

The standard of mechanical properties conforms to shipping institutions and the certificate of inspection would follow it unless the purchaser has special requirement.
