Product Description
TIG Stainless Steel Welding Wire ER308L,TIG Stainless Steel Welding ROD ER308L,ER308L,Stainless Steel Welding ROD ER308L.

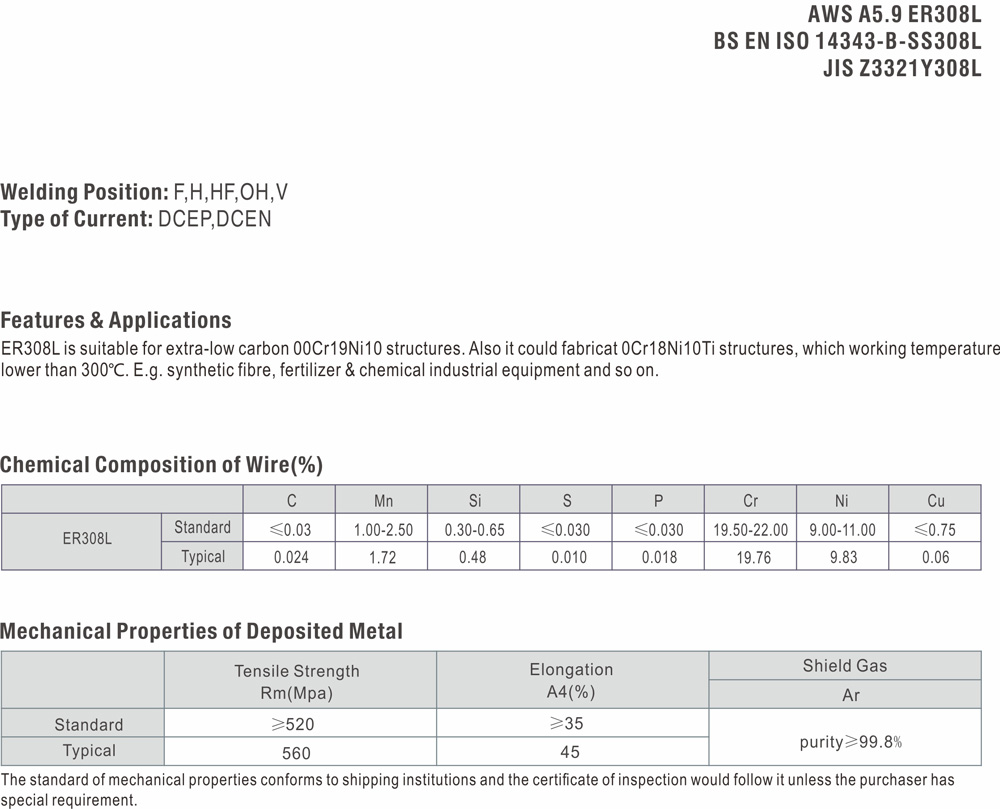

AWS A5.9 ER308L
BS EN IS0 14343-B-SS308L
JIS Z3321Y308L
Welding Position: F,H,HF,OH,V
Type of Current: DCEP,DCEN
Features & Applications
ER308L is suitable for extra-low carbon 00Cr19Ni10 structures.Also it could fabricat OCr18Ni10Ti structures, which working temperature lower than 300°C. E.g. synthetic fibre, fertilizer & chemical industrial equipment and so on.
Chemical Composition of Wire(%)
| ER308L | C | Mn | Si | S | P | Cr | Ni | Cu |
| Standard | ≤0.03 | 1.00-2.50 | 0.30-0.65 | ≤0.030 | ≤0.030 | 19.50-22.00 | 9.00-11.00 | ≤0.75 |
| Typical | 0.024 | 1.72 | 0.48 | 0.010 | 0.018 | 19.76 | 9.83 | 0.06 |
Mechanical Properties of Deposited Metal
| Yield Point ReH(Mpa) |
Tensile Strength Rm(Mpa) |
Shield Gas | |
| Ar | |||
| Standard | ≥520 | ≥35 | purity≥99.8% |
| Typical | 560 | 45 |
The standard of mechanical properties conforms to shipping institutions and the certificate of inspection would follow it unless the purchaser has special requirement.
