Product Description

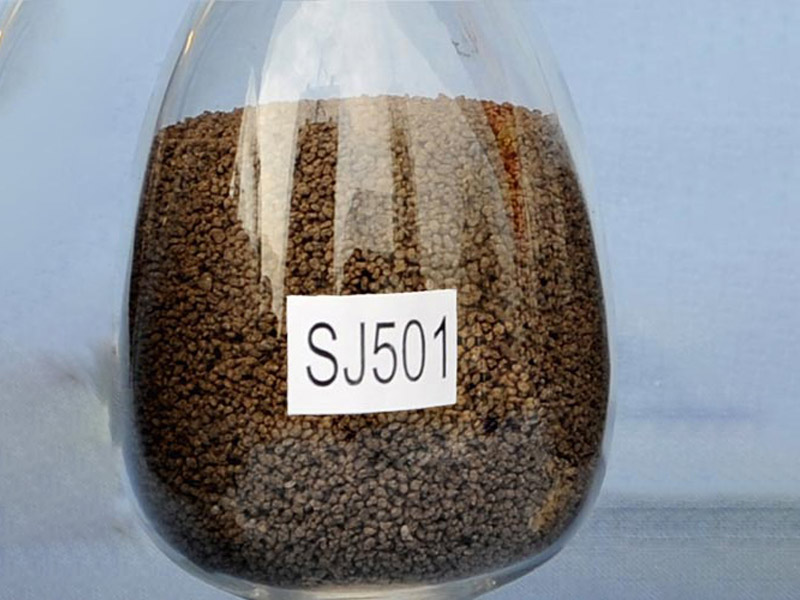

Submerged Arc Welding Flux SJ501
Specification: EN760 SAAR 1 88AC H5
AWS A5.17/5.23 F7A0-EL12K F7A2-EM12K
Applications:
Butt and flat fillet welding of miniature LPG tanks, ships, vehicles, agricultural implements, machinery, boilers, bridges,structural steels.
Characteristics: SJ501 is an agglomerated aluminate-rutile type flux
Metallurgical behavior:High silicon and manganese pick-up is obtained.
Basicity: 0.7(BllW)
Damp fux should be re-dried at 300-350 °C for 2 hours. Rust,grease and moisture on the weldment should be removed before welding.
Chemical Composition of SJ501 (%)
| Si0₂+Ti0₂ | CaF₂ | Al₂0₃+Mn0 | CaO+MgO | S | P |
| 25-35 | 5-10 | 50-60 | 3-10 | ≤0.05 | ≤0.05 |
Chemical Composition of Deposited Metal
| Wire | C | Si | Mn |
| EM12K | 0.05-0.10 | 0.05-0.10 | 1.4-1.6 |
Mechanical Properties of the Deposited Metal
| Wire | Standard | Yield Point σₛ(Mpa) | Tensile Strength σᵦ(Mpa) | Elongation σ₅(%) | Impact Value(J) |
| EL12 | F7A0-EL12 | ≥330 | ≥420 | ≥22 | ≥53（-18°C） |
| EM12K | F7A2-EM12K | ≥410 | ≥500 | ≥22 | ≥45（-20°C） |
