Product Description

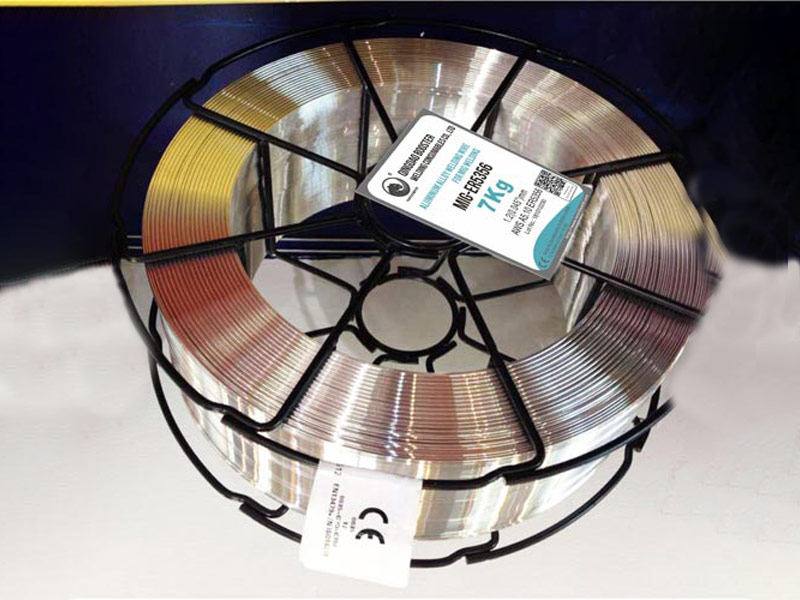

MIG Aluminum Alloy Welding Wire ER5356
AWS A5.10 ER5356
Welding Position: F,H,HF,V
Type of Current: DCEP
Features & Applications
ER5356 used for welding or surtacing structures of wrought Aluminum alloy or cast aluminum ally that contains 5% magnesium(Mg). such as bicycles, sports apparatus. locomotives carriages, motor vehicles, ships as well as pressure vessels of chemical industry. aviation industry, armament and so on.
Chemical Composition of Wire(%)
| Ai | Si | Fe | Cu | Mn | Mg | Zn | Ti | Be | Others | |
| Standard | Remain | ≤0.25 | ≤0.40 | ≤0.10 | 0.05-0.20 | 4.5-5.5 | ≤0.10 | 0.05-0.20 | ≤0.0003 | 0.05-0.20 |
| Typical | 0.06 | 0.12 | 0.080 | 0.12 | 4.85 | 0.007 | 0.12 | 0.0001 | 0.09 |
Mechanical Properties of Deposited Metal
| Yield Strength Rp0.2(Mpa) |
Tensile Strength Rm(Mpa) |
Elongation A(%) |
Shield Gas | |
| Typical | 150 | 265 | 21 | Ar |
