TIG Stainless Steel Welding Wire ER316L,TIG Stainless Steel Welding ROD ER316L,ER316L,Stainless Steel Welding ROD ER316L.

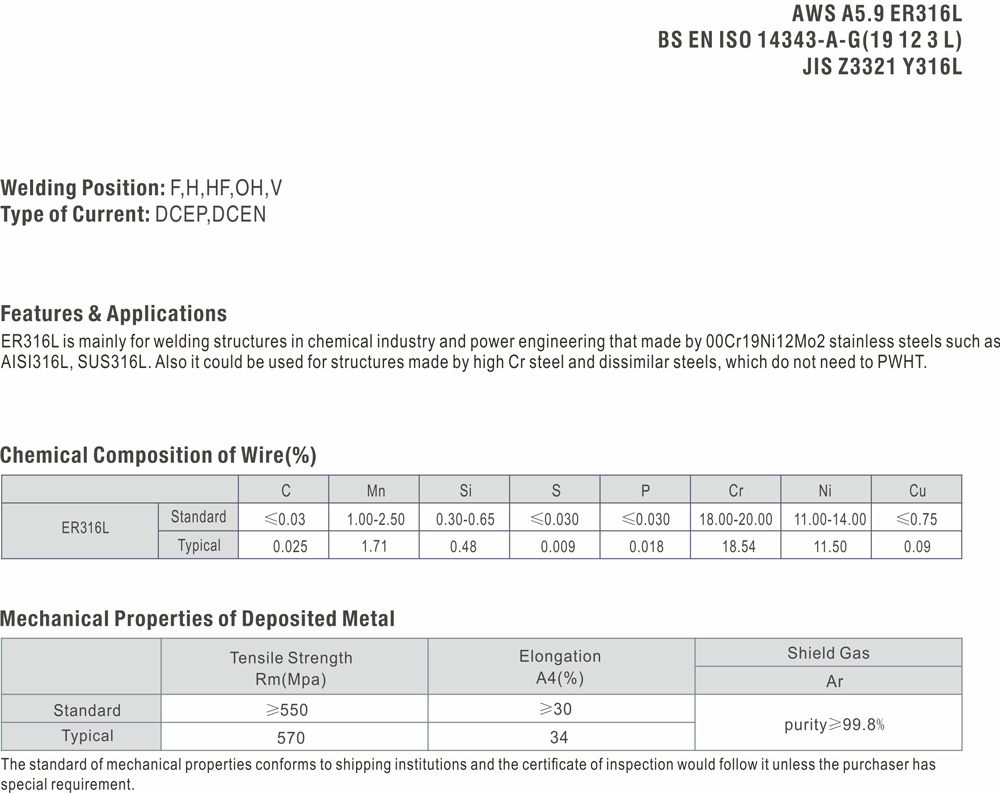

AWS A5.9 ER316L
BS EN ISO 14343-A-G(19123L)
JIS Z3321 Y316L
Welding Position: F,H,HF,OH,V
Type of Current: DCEP,DCEN
Features & Applications
ER316L is mainly for welding structures in chemical industry and power engineering that made by 00Cr19Ni12Mo2 stainless steels such as AISI316L, SUS316L. Also it could be used for structures made by high Cr steel and dissimilar steels, which do not need to PWHT.
Chemical Composition of Wire(%)
| ER316L | C | Mn | Si | S | P | Cr | Ni | Cu |
| Standard | ≤0.03 | 1.00-2.50 | 0.30-0.65 | ≤0.030 | ≤0.030 | 18.00-20.00 | 11.00-14.00 | ≤0.75 |
| Typical | 0.025 | 1.71 | 0.48 | 0.009 | 0.018 | 18.54 | 11.50 | 0.09 |
Mechanical Properties of Deposited Metal
| Tensile Strength Rm(Mpa) |
Elongation A4(%) |
Shield Gas | |
| Ar | |||
| Standard | ≥550 | ≥30 | purity≥99.8% |
| Typical | 570 | 34 |
The standard of mechanical properties conforms to shipping institutions and the certificate of inspection would follow it unless the purchaser has special requirement.
