Product Description

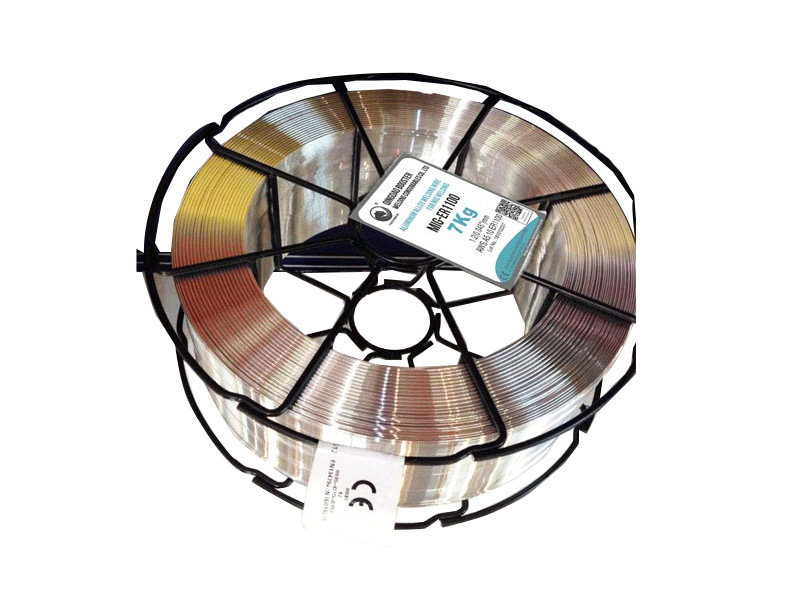

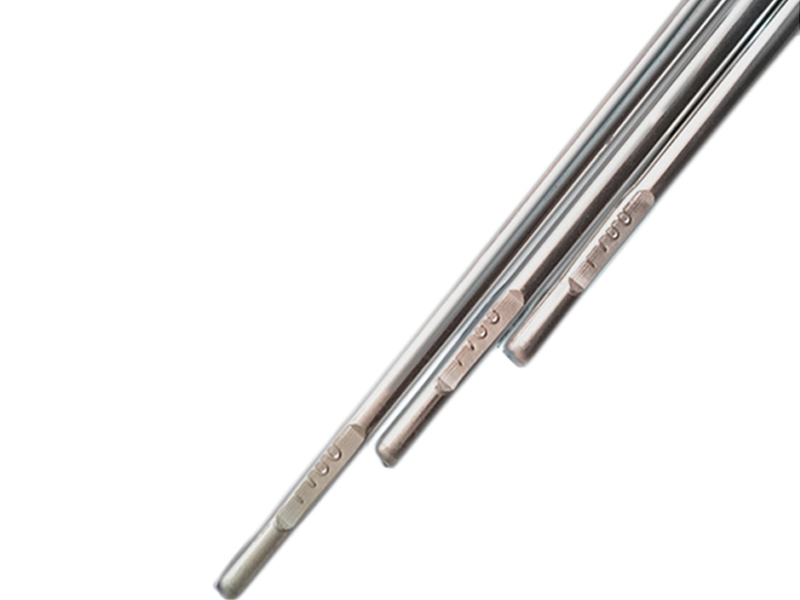

TIG Aluminum Alloy Welding Wire ER1100
AWS A5.10 ER1100
Welding Position: F,H,HF,V
Type of Current: AC
Features & Applications
ER1100 used for welding Aluminum structures of industries of electricity, chemical. foodstuff, metallurgy, locomotives carriages and so on.
Chemical Composition of Wire(%)
| Ai | Si | Fe | Cu | Mn | Mg | Zn | Ti | Be | Others | |
| Standard | ≥99.0 | ≤0.95 | ≤0.95 | 0.05-0.20 | ≤0.05 | — | ≤0.10 | — | ≤0.0003 | — |
| Typical | Remain | 0.26 | 0.26 | 0.080 | 0.005 | — | 0.007 | — | 0.0001 | — |
Mechanical Properties of Deposited Metal
| Yield Strength Rp0.2(Mpa) |
Tensile Strength Rm(Mpa) |
Elongation A(%) |
Shield Gas | |
| Typical | 34 | 95 | 24 | Ar |
