E308LT1-1 (Flux Cored Stainless Steel Welding Wire) AWS SPECIFICATION: AWS A5.22/ ASME SFA5.22 E308LT1-1/-4 EN ISO 17633-A Typical Applications: • Application in Chemical, Food processing industrie……


Product Description

E308LT1-1 (Flux Cored Stainless Steel Welding Wire)

AWS SPECIFICATION: AWS A5.22/ ASME SFA5.22 E308LT1-1/-4

EN ISO 17633-A

Typical Applications:

• Application in Chemical, Food processing industries, Pipes & tubes

• Welding of 18Cr-8Ni stainless steels of AISI 301, 302, 304, 304L type

Features:

• Stable arc, low spatter, and easy slag removal

• Typical 19Cr-10Ni weld deposit

• Rutile-based extra low carbon gas shielded stainless steel FCW wire

• Good performance in all positions

Welding Current: GMAW-DCEP

Welding Positions: F, H, OH,V-Down

Shielding gas: CO2100%, 20ℓ /min wire

Available Sizes
Diameter

mm

Spool

12.5kg

1.2
1.6

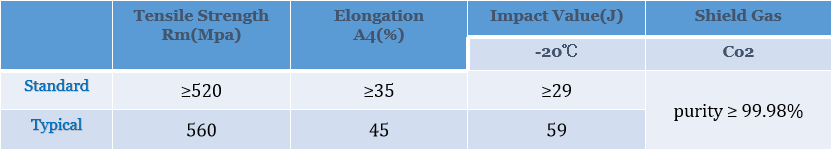

Mechanical Properties of Deposited Metal(AW)

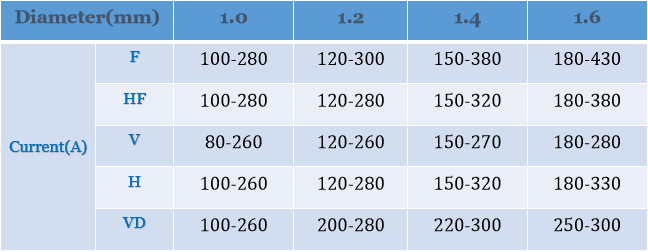

Size & Recommended Current(DC+ )
Notice: 1. The flow rate of shield gas should within 20L-25L/min in welding. 2. The wire extention should be 15mm-25mm. 3. The surfaces to be welded must be cleaned away impurities of oil contamination, rust, moisture and so on. 4. The welding conditions mentioned above for reference only and it is better to do a welding procedure qualification according to project before put it into formal welding
